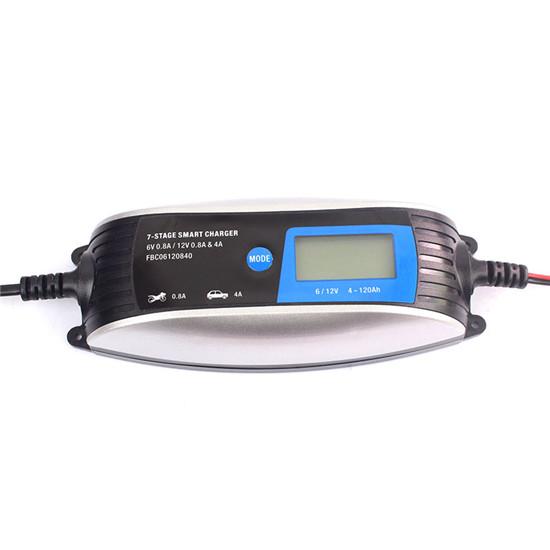

6V 12V Stage Car Automatic Smart Battery Charger With LCD Display Car Motorcycle Battery Waterproof Charger Tools
Description:
100% Brand New and High Quality!
Charging battery range:
12V for 4AH - 120AH
6V for 4AH - 30AH
The charger is designed to charge 6V and 12V lead-acid batteries from 4AH - 30AH(6V), 4AH - 120Ah(12V).
High efficiency (>85%).
The 7-stage microprocessor controlled charging process provides the best possible application and enables efficient battery charging.
Charging voltage adapts to temperature to prevent over or under battery charging.
Capable of recharging severely discharged or heavily sulfated battery.
Reverse polarity protection, short circuit protection, sparks free contact.
Ultra low input power consumption while in standby mode.
Ease of use. Clear charging status display.
Full microprocessor controlled.
Does not over charge your battery even if it is kept connected inany mode.
Microprocessor control (CPU).
7-stage automatic charging:
This is a fully automatic battery charger with 7 charging stages.
Automatic charging prevents the battery from overcharging. Therefore, you can connect the charger to the battery indefinitely.
7-stage charging is a very comprehensive and accurate charging process that provides longer life and better performance for your battery compared to using a conventional charger.
The 7-stage charger is suitable for most battery types, including calcium, EFB, gel and AGM, wet batteries. They can also help restore drained and sulfated batteries.
Switching technology: yes
Polarity protection: yes
Output short circuit protection: yes
Non-Battery Link Protection: Yes
Overvoltage protection: yes
Over temperature protection: yes
Cooling: natural cooling
Seven-stage charging:
1. Diagnosis: Check the battery status.
2. Constant current 1: Use the maximum value. recharging current.
3. Constant current 2: Use 3/4 current charging.
4. Constant current 3: Charging with 1/2 current.
5. Constant pressure:
The battery can be charged up to almost 90%.
The charging current is gradually tapered, and the charging voltage is kept constant at the set value.
6. The battery is full
7. Prepare to use or keep the battery connected charger

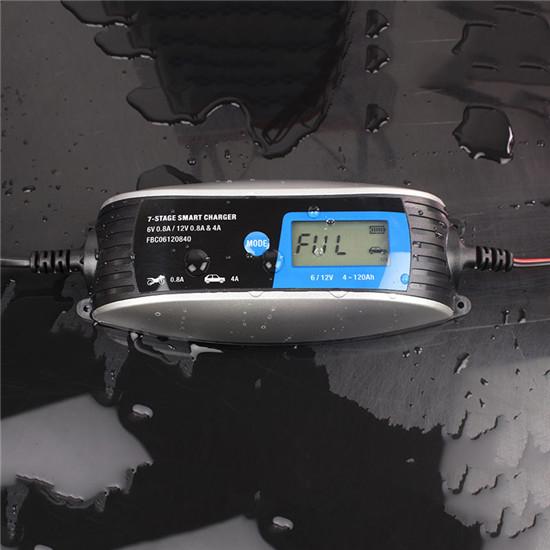

IP65 anti-splashing: anti-splashing, rain-proof. (Please do not put it in water, otherwise it will damage the charger.)
AC cable length: 170cm, DC cable length: 65 + 70cm.
Specifications:
Input voltage: 180-260V AC, 50-60Hz
Rated output: 12V DC 0.8A and 4A, 6V DC 0.8A
Minimum starting voltage: 2.0V
Thermal protection: 65C +/- 5C
Efficiency: App. 85%.
Meet the standards: CB, CE, IEC60335, EN61000, EN55014
Dimensions (length × width × height): 200 × 80 × 45mm
Net weight: 490 grams

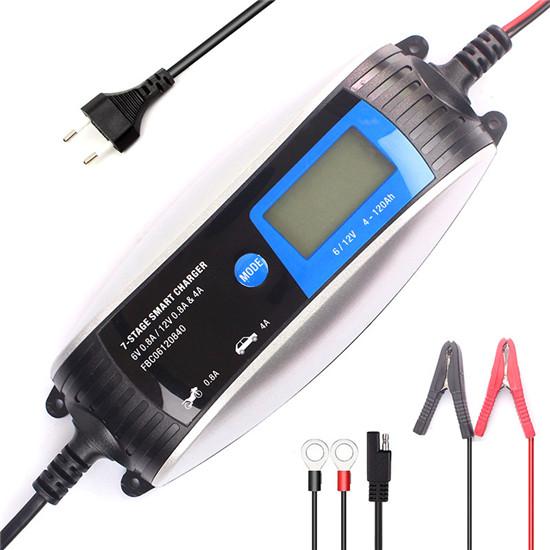

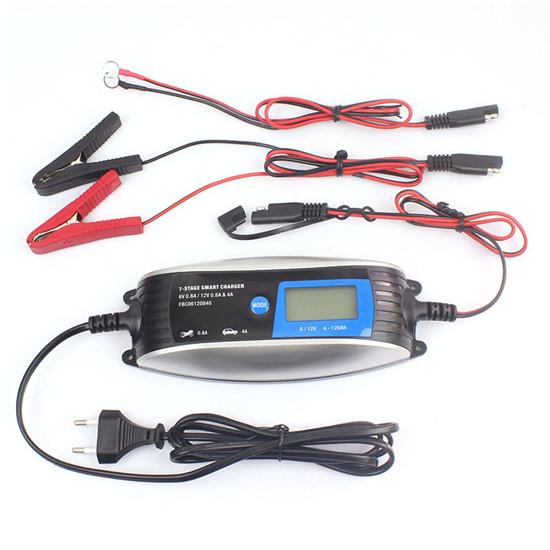

Package Included:
1* charger
2* charging cable
1* instruction manual
Notes:
Check battery manufacturer specifications before using this charger.
Explosive gases may escape from the battery during charging. Provide ventilation to prevent flames and sparks.
Do not expose charger to sunlight, high temperature environment.
Battery acid is corrosive. Rinse immediately with water if acid comes into contact with skin or eyes.
Do not charge a frozen or damaged battery.
Do not charge non-rechargeable batteries.
Do not place the charger on the battery while charging.
Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause explosion.
When working with a lead-acid battery, remove personal metal items such as rings, bracelets, necklaces, watch…
Do not smoke or allow a spark or flame while charging.
In order to reduce risk of electric shock, unplug charger from AC outlet before doing any maintenance or cleaning.
Not for use by children or by anyone who is unable to follo instructions of this manual, unless they are supervised by an adult to ensure the proper use of charger
Product type: Car Batteries
